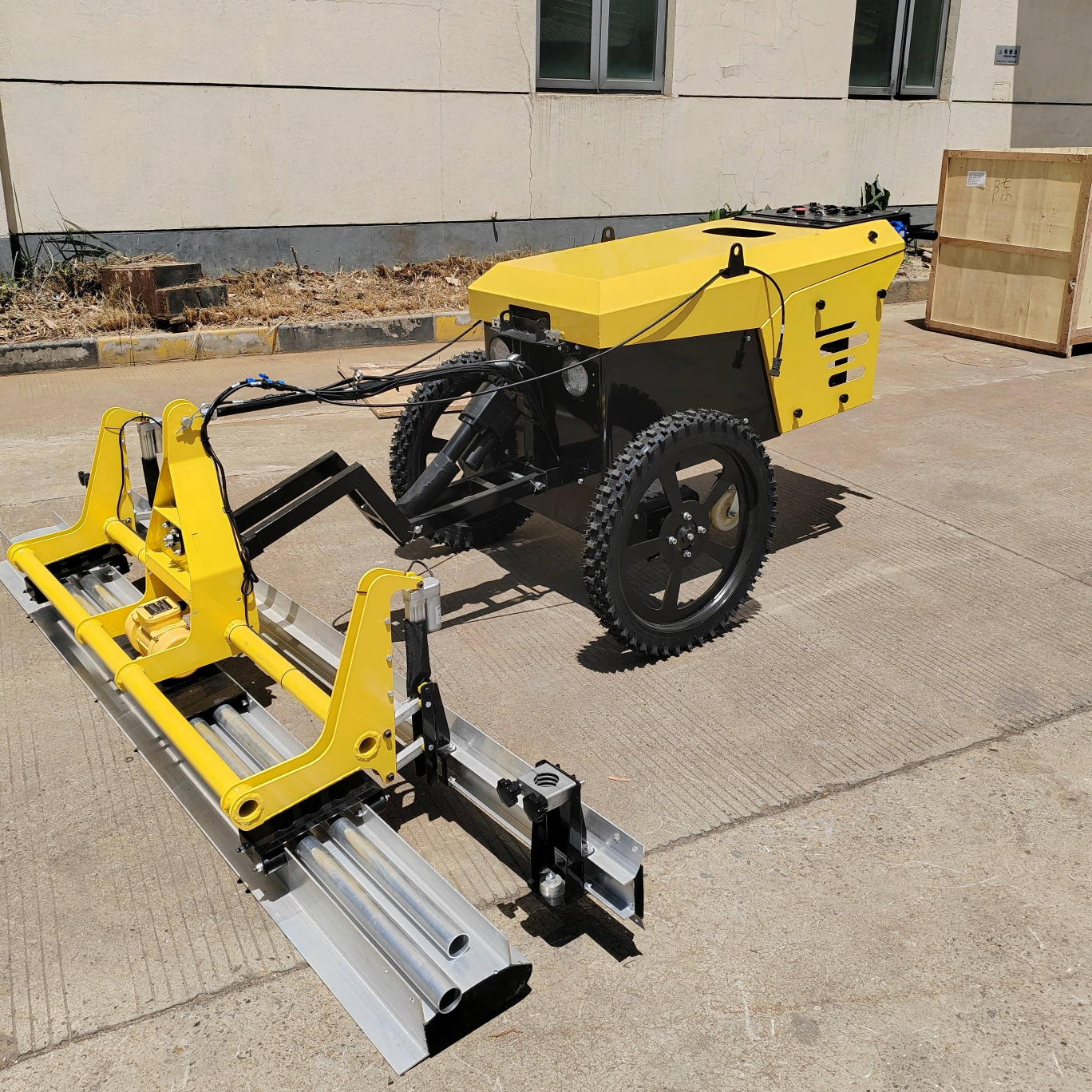

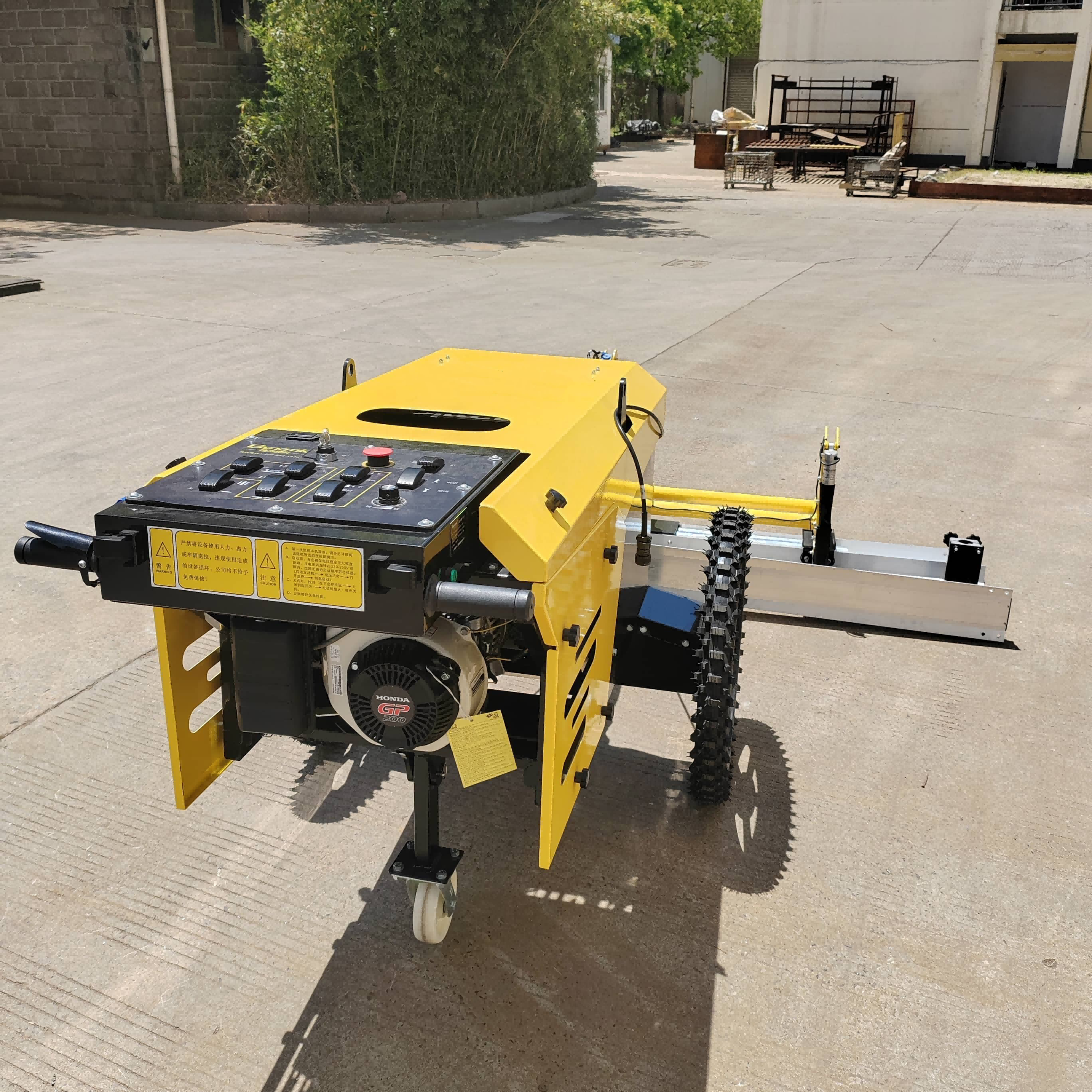

Infrared Auto-Leveling Concrete Screed Small Handheld Laser Paver for Factory Indoor
Product features::
High precision: The laser leveling machine can increase the flatness and levelness of the ground by more than 3 times, and the density and strength by more than 20%.
High efficiency: Using a laser leveling machine can increase construction efficiency by over 50% and save approximately 35% of labor costs.
Product Introduction
Product parameters
Product description

Product name:

Infrared Auto-Leveling Concrete Screed Small Handheld Laser Paver for Factory Indoor

Product introduction:

The laser emitter emits a laser beam, forming a reference plane.

The laser receiver on the leveling machine continuously monitors the height of the leveling head, ensuring that it remains in alignment with the laser reference plane.

The leveling head automatically adjusts its height based on the laser signal, ensuring that the flatness and levelness of the concrete meet the design requirements.

The leveling machine is equipped with a powerful vibrator, which can effectively vibrate the concrete to ensure its density and uniformity.

Product application:

Plaza, residential ground, municipal road surface, underground garage, ordinary industrial factory, workshop, automated vertical warehouse, large-scale storage supermarket, logistics center, exhibition center

Product features:

High precision: The laser leveling machine can increase the flatness and levelness of the ground by more than 3 times, and the density and strength by more than 20%.

High efficiency: Using a laser leveling machine can increase construction efficiency by over 50% and save approximately 35% of labor costs.

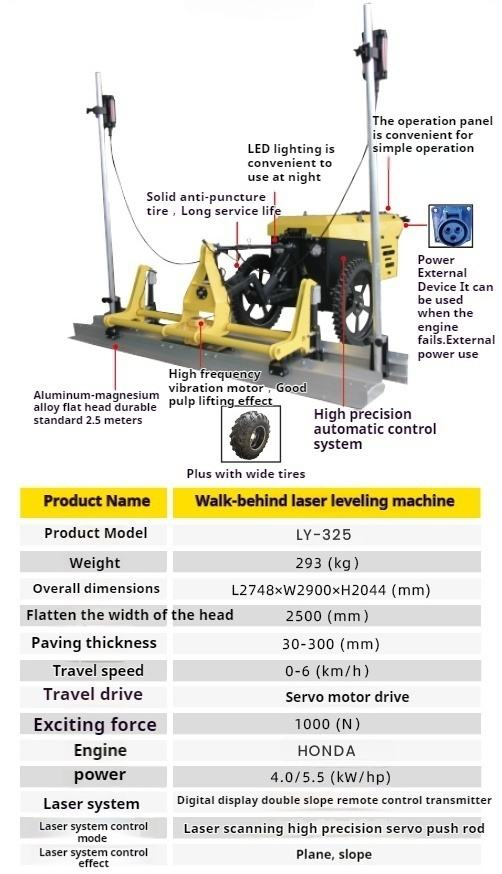

Product parameters:



Flatten the width of the head:2500mm

Paving thickness:30-300mm

Travel speed:0-6km/h

Travel drive:Servo motor drive

Exciting force:1000N

Engine:Honda GP200

power:4.0/5.5(kw/hp)

Laser system:Digital display double slope

remote control transmitter

Laser system control mode:Laser scanning

high precision servo push rod

Laser system control effect:Plane, slope

Overall dimensions:2748x2900x2044mm

Weight:293(kg)
